원래 장소: 중국 허난성 정저우
브랜드 이름: Shenghong
인증: CE, ISO
모델 번호: SH 시리즈
지불 및 배송 조건
최소 주문 수량: 1
가격: can be negotiated
포장 세부 사항: 컨테이너 또는 합판 상자
배달 시간: 10-15 근무일
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 한 달에 200 세트
과립의 힘: |
높은 |
응용 프로그램 자료: |
가루 |
비료 효율성: |
높은 |
수분: |
20%-40% |
유형: |
유무기복합비료 |
완제품의 입자 크기: |
2-5mm |
상태: |
새로운 |
전력 소비: |
낮은 |
과립의 힘: |
높은 |
응용 프로그램 자료: |
가루 |
비료 효율성: |
높은 |
수분: |
20%-40% |
유형: |
유무기복합비료 |
완제품의 입자 크기: |
2-5mm |
상태: |
새로운 |
전력 소비: |
낮은 |

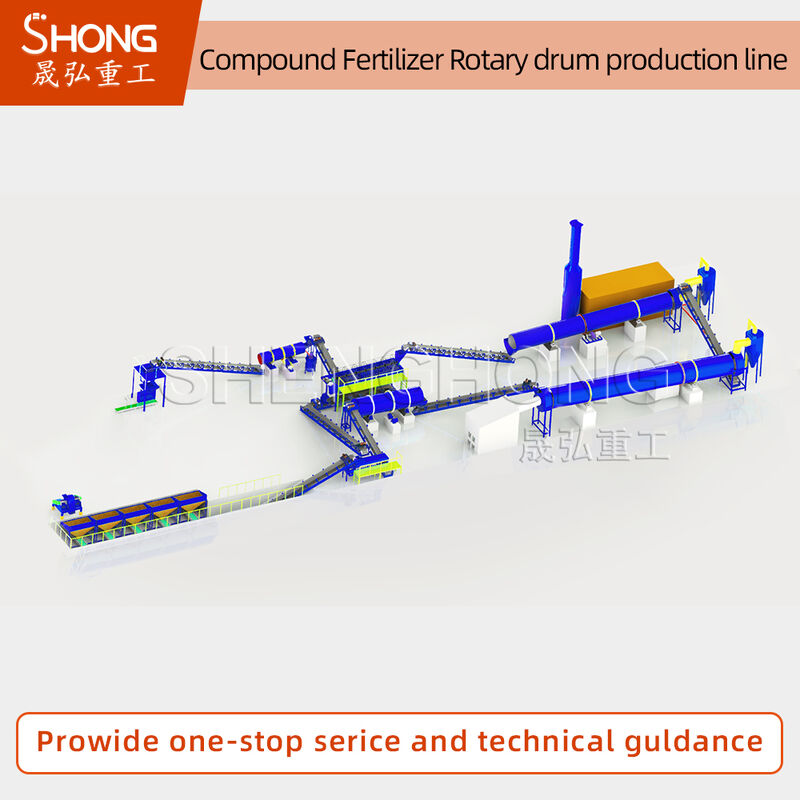

This fertilizer production line is capable of producing 100,000 tons of compound fertilizer annually. Its core component is a high-capacity rotary drum granulator, which is perfectly suited for the manufacturing of high, medium, and low concentration compound fertilizers.
Raw Materials
| No. |
Processes |
Machines | Function of machines |
|---|---|---|---|
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine & Granulator | Feed mixed powder into granulator evenly and make mixed powder into fertilizer granules |
| 5 | Drying process | Dryer, Hot stove, Cyclone | Dry fertilizer granules to low moisture by hot air, generate hot air, and collect dust |
| 6 | Cooling process | Cooler, Cyclone | Cool fertilizer granules to normal temperature and collect dust |
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, microelements etc on fertilizer granules |
| 9 | Packaging process | Air compressor & Packaging machine | Generate power to packaging machine and package fertilizer granules into bags |
Key Features
Utilizes well-established production processes, guaranteeing stable and efficient operation.
Forms well-rounded, spherical particles measuring between 1mm and 3mm in diameter.
Exhibits excellent compatibility with a wide array of raw materials for flexible production.
Incorporates straightforward production formulas for ease of use and control.
Input materials can be tailored according to specific market needs and soil test outcomes. The production line is highly adaptable, producing not only compound fertilizer but also organic fertilizer and organic compound fertilizer with NPK content ranging from 20% to 48%.
